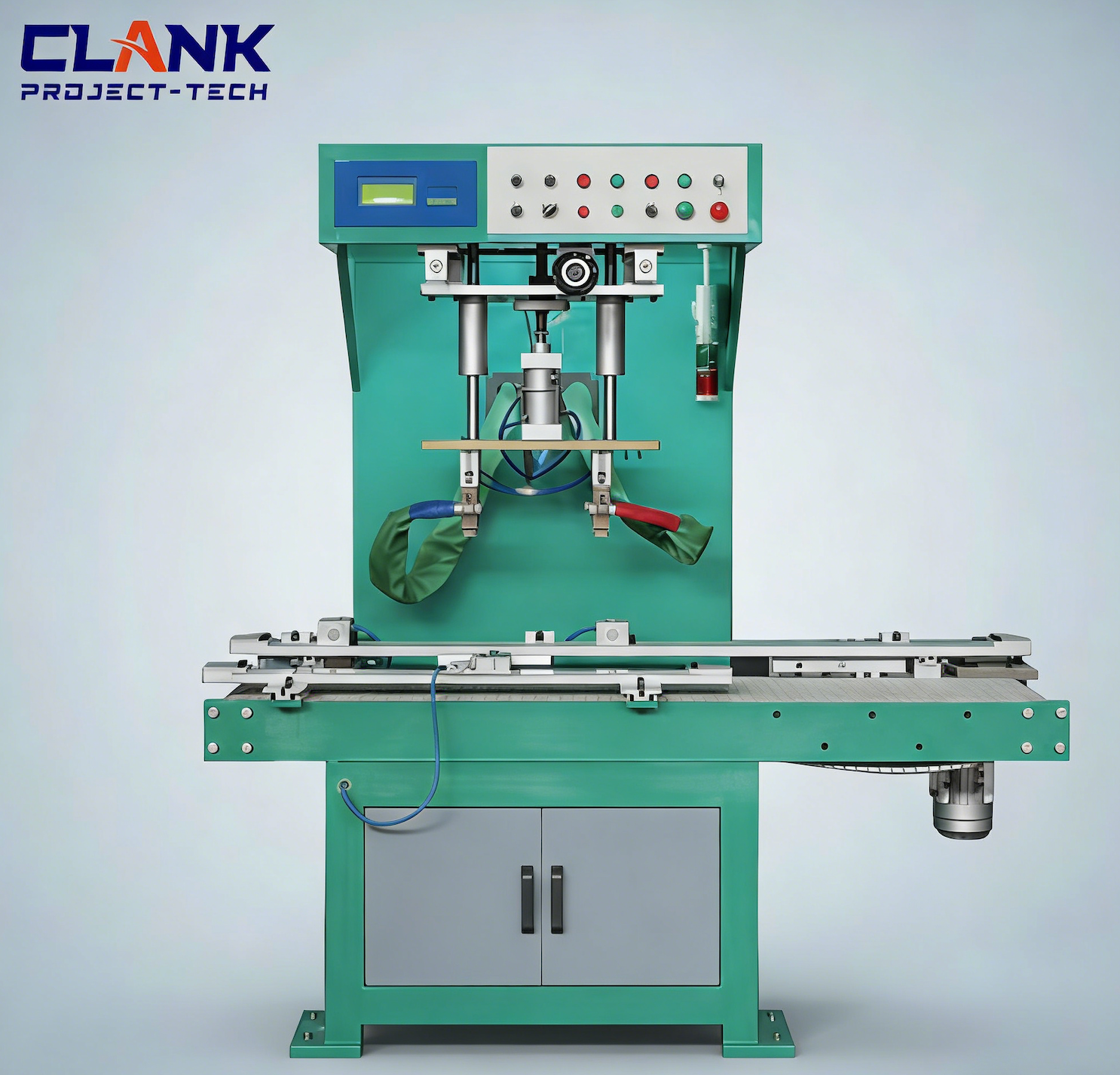

Automatic High Rate Discharging Machine (1500A/12V)

1. Application: Used for on-line instantaneous high-current discharging capacity testing after acid-filling and battery formation for 12V 32Ah~200Ah batteries.

2. Feature: Through setting the parameters like upper limit and lower limit of open/close circuit voltage, discharging current, discharging time, etc. It adopts constant current timing as working mode, with the function of power failure parameter protection, voltage over-limit sound and light alarm, qualified battery counting, etc.

3. Production Capacity: 3~4 pcs batteries/min

4. Discharging Time: 0~9.9 sec., adjustable

5. Discharging Current Range: 10%–100%, precision: 1% F.S

6. Testing Voltage: 12V, precision: 0.5% F.S

7. Electric Power: AC 380V, 50Hz, 5 KW

8. Air Source: 0.05 m³/min, 0.5 Mpa

9. Dimension (LWH): 180012001900 mm

10. Main Configuration: A3 steel frame, Mitsubishi PLC/HMI, AirTAC pneumatic components, Schneider low-voltage apparatus.
