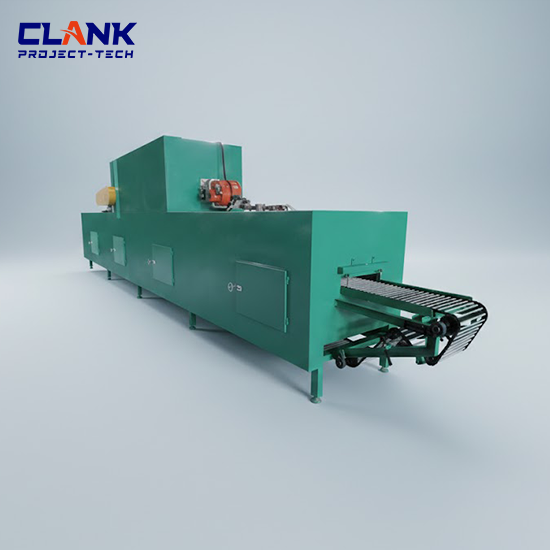

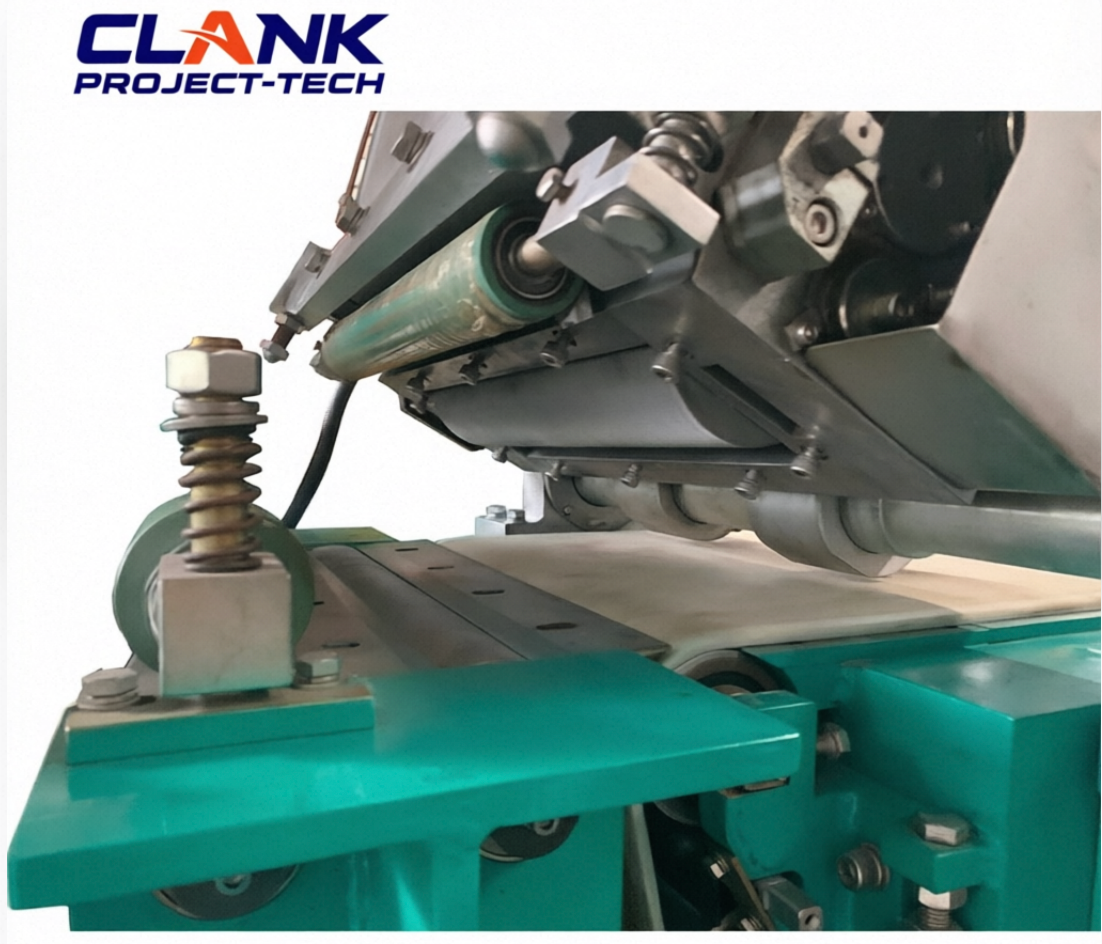

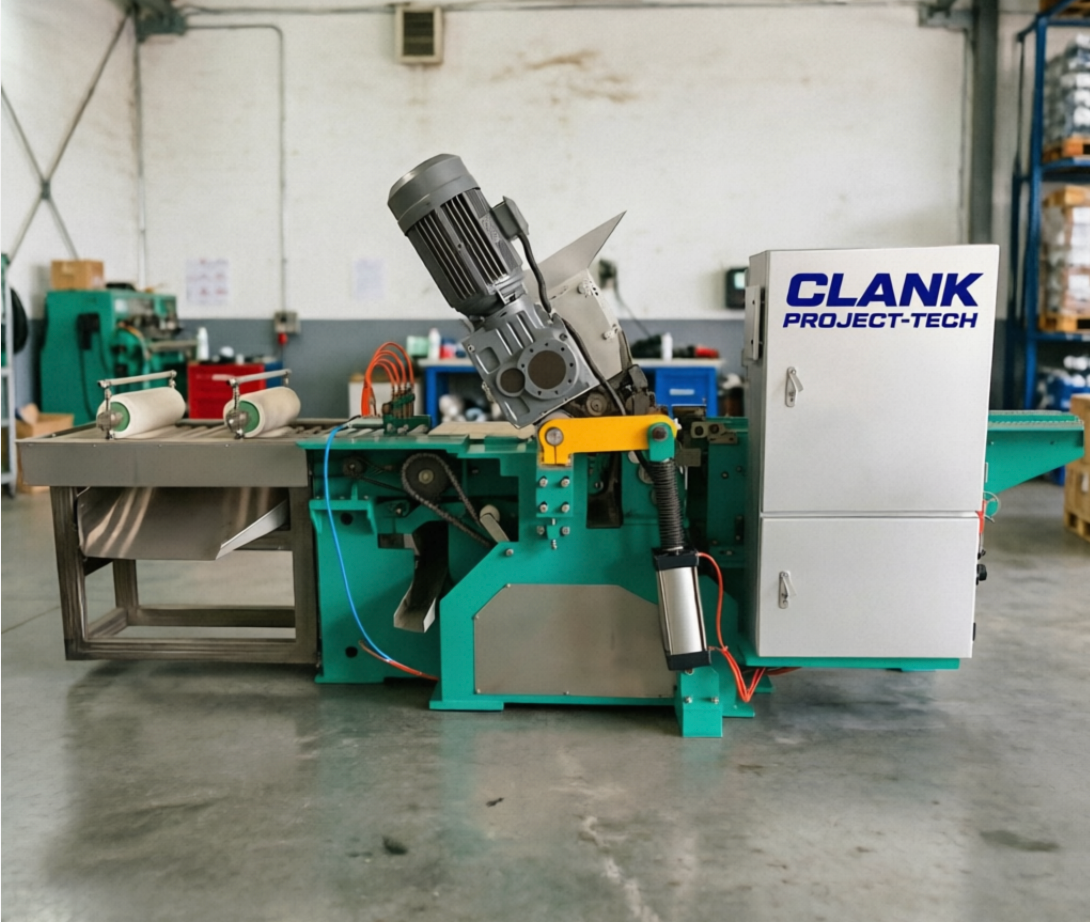

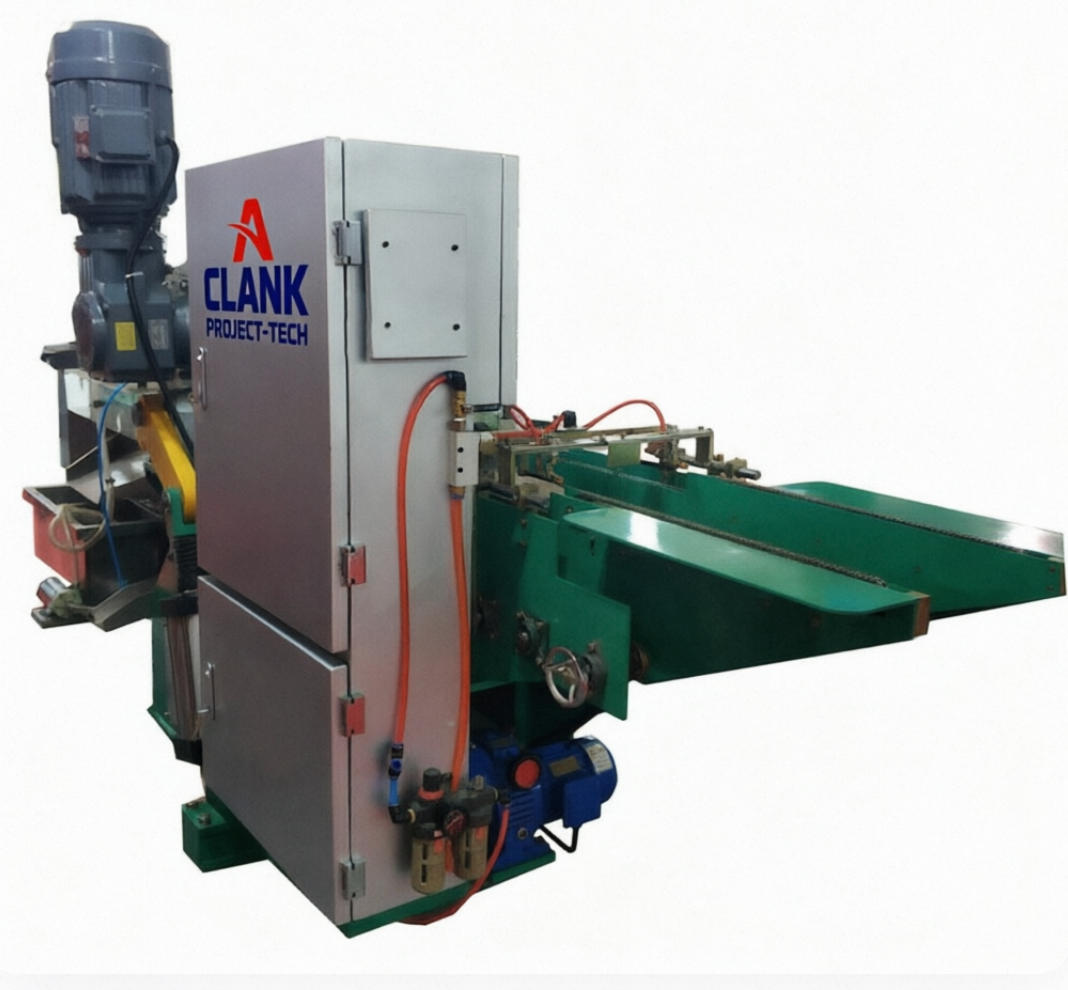

Double Sides Pasting Machine

Equipment Feature

This double-side pasting machine is with reasonable structure, stable start-up, convenient operation, high production efficiency, etc.

Main Technical Parameter

1. Total power: 13.5 KW
2. Pasting belt width: 400 mm, available pasting width: 120–350 mm
3. Applicable grid dimension:
   Grid height: 160~350 mm (including lug 220~400 mm)
   Grid width: 100~170 mm
4. Grid thickness: 1.1~5.0 mm
5. Applicable lead paste: sand paste, apparent density 3.25~4.5 g/m³
6. The pasting weight deviation:
   Pasting volume is within 300 g: ±3 g/panel
   Pasting volume is > 300 g: ±1.5%/panel
7. Pasting uniformity: ±0.1 mm
8. Production capacity: 70~140 pcs/min
9. Overall dimension: 380011001800 mm (LWH)
10. Main machine motor power: 5.5 KW, paste hopper motor power: 7.5 KW; grid feeding motor power: 0.75 KW.
11. Air source: 0.6~0.7 MPa
12. Machine weight: about 2600 KG

Equipment Feature

1. Both the main machine transmission and hopper speed change adopt frequency control, realizing stepless speed regulation; multiple thickness of the grid can be pasted, to meet the pasting requirement of different speed and grid. The grid feeding mechanism is prolonged, ensuring the feeding stability. The whole machine body is with spray treatment, with better acid-proof and rust-proof performance.
2. The paste hopper adopts reasonable double-layer wallboard separation device, the lead paste is difficult to enter into the bearing, which increases the bearing’s service life and reduces the maintenance cost.
3. Lubrication of the hopper adopts centralized lubrication, convenient for the equipment maintenance.
4. Design of the paste feeding roller is reasonable with good strength, which will not break.
