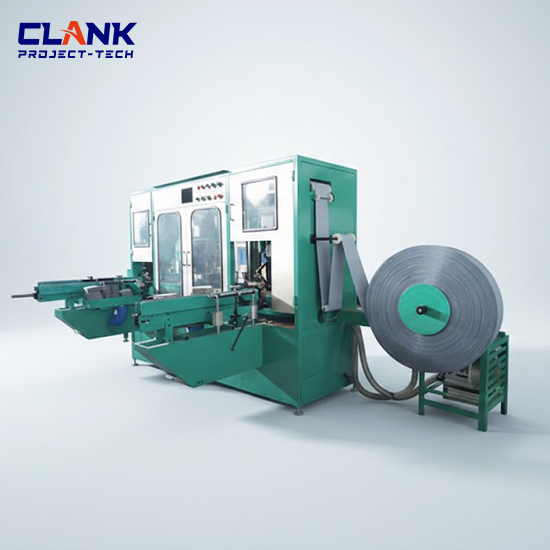

Automatic PE Enveloping Machine

The automatic PE enveloping machine is suitable for automatic enveloping and grouping for automotive battery plate. It has the advantages of high automation, labor saving, energy saving and good environmental protection performance.

4. Power requirement: AC 220V/50Hz;
5. Weight: 750 KG;
6. Enveloping method: envelop positive plate or negative plate, single or double-layer separators;
7. Efficiency: 6 positive and 7 negative as an example, production capacity is more than 450 batteries per shift for single separator (actual production capacity);
8. The scrap rate of the plate: less than 0.5% (requires that the length, width, and thickness tolerance of the plate dimension is less than 1 mm, no cracks, no leaks, no bad plates or lead paste falling off);
9. Adjust and replace the model: adjust the width of the corresponding plate and the width of separator through the screw, and quickly replace the model about 20 minutes;
10. The thickness of the single layer of the separator is less than 3.0 mm;
    The range of the separator: width 95–180 mm;
    The maximum outer diameter of the roll: 800 mm;
11. Plate range (including lugs): width 90–165 mm, height 105–200 mm, thickness 1–3 mm;
12. Number of operators: 1 person (plate feeding and plate collection)

Outstanding features:

High degree of automation, can reduce labor 75%.

Energy saving, good environmental performance, in line with environmental requirements, is an ideal choice for battery factory.

The equipment is stable, safe, reliable and easy to maintain.

Technical parameters:

1. Efficiency: 80 plates/min
2. Type of separator: PE separator
3. Plate quantity for grouping: any
4. Packing method: either positive plate or negative plate is available;
5. Range of plate:
   Plate size (excluding lug): a. 100~150 mm  b. 100~130 mm
   Plate thickness: 1.35 mm~3 mm
