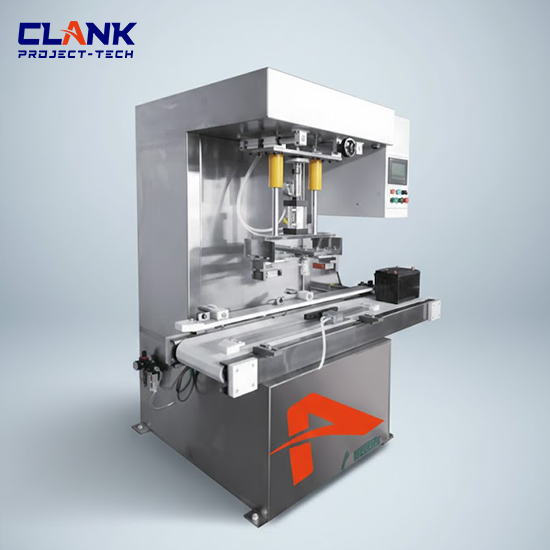

Automatic Top Cover Leakage Testing Machine

1. Application: Used for testing top cover leakage for 12V 32Ah–200Ah battery.

2. Operation: The battery will be positioned automatically by the photoelectric sensor; then the test jig will descend and blow air into the battery to test leakage. If unqualified, the machine will send out alarm signal and reject the battery. If qualified, battery will be conveyed to the next work process.

3. Feature: High testing accuracy, PLC control, safe and reliable. It adopts imported pressure sensor, with high resolution. Both testing time and pressure difference are adjustable.

4. Production Capacity: 2~2.5 pcs batteries/min

5. Testing pressure: 0–100 Kpa

6. Testing time: 0–99 sec, adjustable

7. Electric Power: AC 380V, 50Hz, 2 KW

8. Air Source: 0.1 m³/min, 0.6 Mpa

9. Dimension (LWH): 150011001900 mm

10. Weight: 600 kg

11. Main Configuration: 316L stainless steel frame, Mitsubishi PLC/HMI, SMC pressure sensor/pressure regulating valve, AirTAC pneumatic components, Schneider low-voltage apparatus.
