Application

Pour out the acid for 12V 32Ah–200Ah batteries after battery formation.

Operation

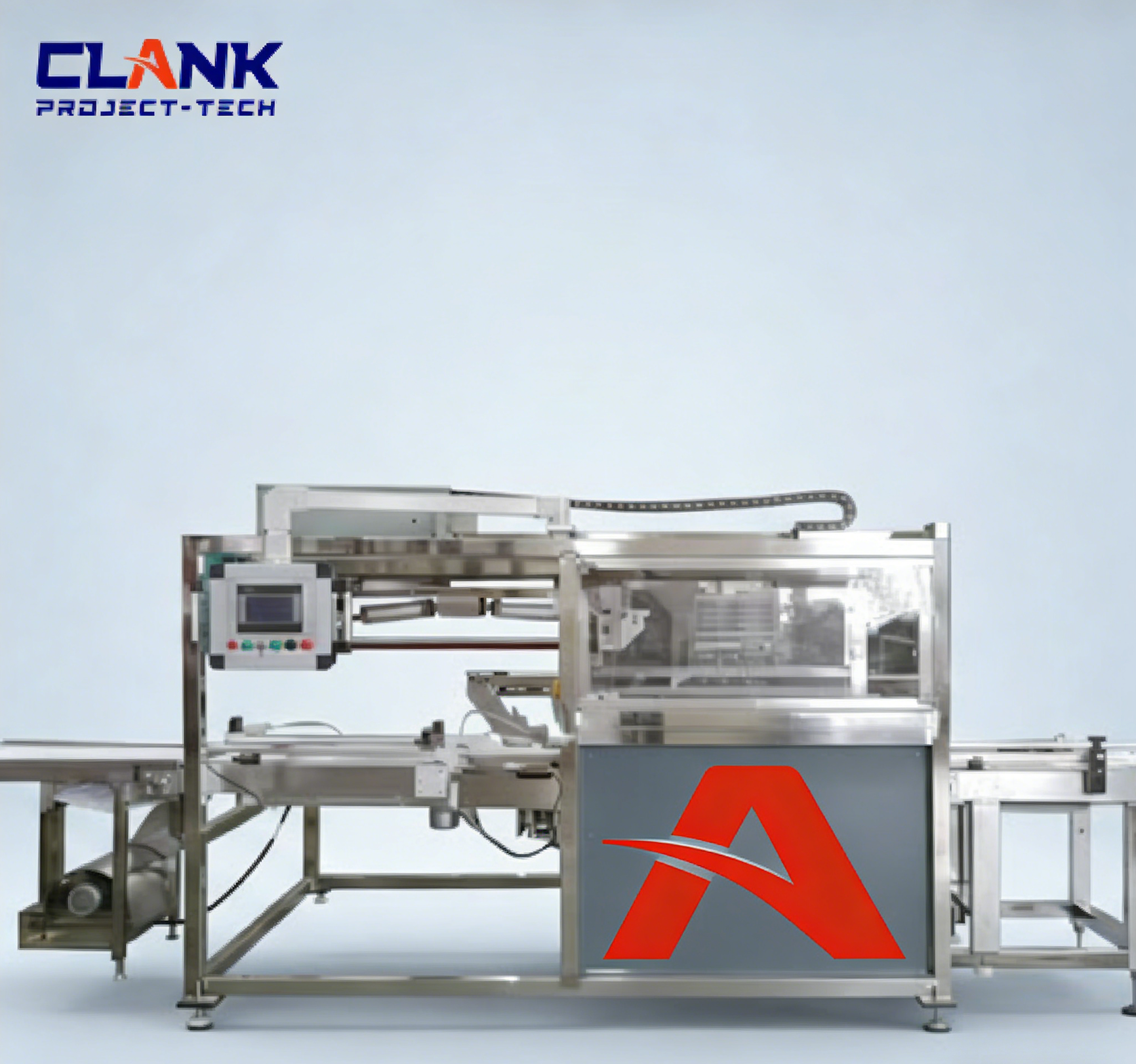

The machine will convey batteries, the photoelectric sensor will position the battery automatically, meanwhile the stopper will stop the front station's battery. The machine will rotate the batteries to the required position and pour out the acid (the acid pouring time can be set). During acid pouring, the stopper will open and another group of batteries will enter into the acid pouring station; after accurate position by photo-electric sensor, the machine will rotate the batteries to the required position and pour out the acid. The process will be repeated.

Feature

The machine has four stations. It adopts unique double-layer transmission chain plate. Rapid and accurate, operator is not required.

1. Production Capacity: 4~6 pcs batteries / min
2. Electric Power: AC 380V, 50HZ, 3 KW
3. Air Source: 0.1 m³/min, 0.6 MPa
4. Dimension: 2800 × 1500 × 2000 mm
5. Weight: 1000 Kg
6. Main Configuration: 316L stainless steel, PVC acid tank, PP conveyor belt, Mitsubishi PLC/HMI, frequency converter, gear motor, AirTAC pneumatic components, Schneider low-voltage apparatus.
